8513220138 , 8513220128 Sprocket Assembly for BMW ATC300
Related articles
Description:

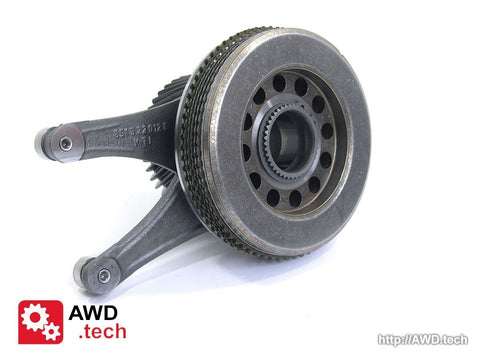

Part Name: Sprocket Assembly
OE numbers: 8513220138 , 8513220128
Sprocket Assembly application in transmissions
* ATC300 Transfer Case used in BMW 3 2004-2013, 5 2004-2013
OE Numbers of ATC300 Transfer Case where this Sprocket Assembly is applicable: 27107599690, 27107599693, 27107613152, 27107613153
This is a brand new, ready-to-install factory-adjusted clutch (drive sprocket). Includes lever 8513220138.
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 84 | Axial Needle Roller Bearing | 1 pc | 1 pc | ||
| 70 | Needle Sleeve | 1 pc | 1 pc | ||
| 71 | Spur Gear | 1 pc | 1 pc | ||
| 83 | Needle Bearing | 1 pc | 1 pc | ||
| 72 | Needle Ring Axial | 2 pcs | 2 pcs | ||
| 73 | Actuator Ring | 8513220128 | 1 pc | 1 pc | |
| 74 | Ball | 5 pcs | 5 pcs | ||
| 75 | Actuator Ring | 8513220138 | 1 pc | 1 pc | |
| 76 | Piston | 1 pc | 1 pc | ||
| 77 | Disk Spring | 4 pcs | 4 pcs | ||
| 78 | Shim Set | 1 pc | 1 pc | Contains Shim Dimensions 3.40, 3.60, 3.80 | |
| 79 | Torque Transfer Shim | 6 pcs | 6 pcs | ||
| 80 | Steel Plate | 7 pcs | 7 pcs | ||
| 81 | Hub | 1 pc | 1 pc | ||
| 82 | Retaining Ring | 1 pc | 1 pc |
Montage des Ritzels
Assemblage des pignons
Gruppo pignone
Conjunto de piñón
Montagem da roda dentada
Zespół koła łańcuchowego
Lánckerék szerelvény
Сглобяване на зъбни колела
Sestava ozubeného kola
Montáž ozubeného kolesa
Συναρμολόγηση οδοντωτού τροχού
Ketjupyöräkokoonpano
Tannhjulmontering
Montering af tandhjul
Tandwielassemblage
Montering av kedjehjul
Ansamblu de pinioane
Sestava verižnika
Krumpliaračių surinkimas
Zobratu montāža
Rattakettide kokkupanek
تجميع ضرس
链轮组件
स्प्रोकेट असेंबली
Perakitan Sproket
スプロケットアッセンブリー
스프라켓 어셈블리
Pemasangan Sprocket
Dişli Tertibatı
Lắp ráp bánh xích
Cases when replacing the clutch assembly is required
Below are cases in which the entire coupling needs to be replaced. This usually happens as a result of overheating, but it can also be a consequence of poor-quality repairs.
Figure 1 shows the separation of the splined part (along the groove of the retaining ring) of the drive gear. Such a breakdown is possible on any transfer case - ATC300/ATC400/ATC500/ATC700.
Apart from the case mentioned above, you may prefer to install a new one simply because it consists entirely of new parts assembled and adjusted at the factory.
We accept credit cards, Apple Pay, Google Pay and Paypal.
-
€159.95 -
€119.00
