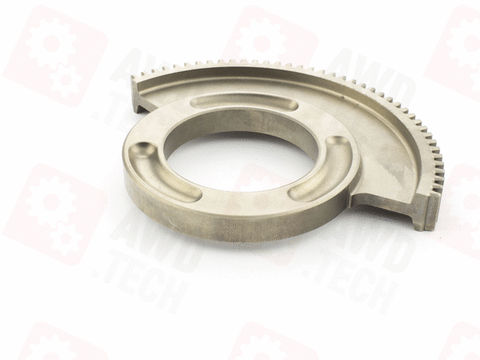

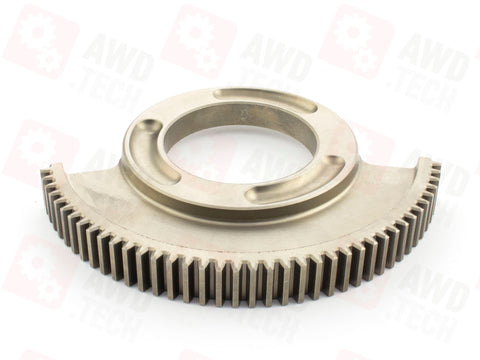

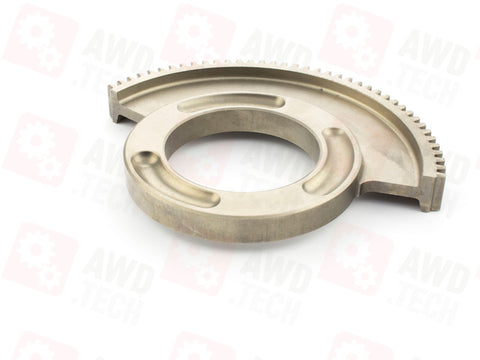

Actuator Ring for ATC35L/ATC45L/Hyundai ATC/Maserati ATC
Related articles
Description:
Part Name: Actuator Ring
OE numbers: Not available
Actuator Ring application in transmissions
* ATC35L Transfer Case used in BMW X1 2010-2015, 1 2009-..., 2 2009-..., 3 2009-..., 4 2009-..., 5 2009-..., 6 2009-..., 7 2009-...
OE Numbers of ATC35L Transfer Case where this Actuator Ring is applicable: 27107643754, 27107643755, 27107649181, 27107649718, 27107649725, 27108643149, 27108643150, 27108662300, 27108662968, 27108697975
Movable lever
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 25 | Actuator Ring | 1 pc | 1 pc |
* ATC45L Transfer Case used in BMW X5 2012-..., X6 2012-..., X5 M 2014-..., X6 M 2014-..., X3 2012-..., X4 2012-...
OE Numbers of ATC45L Transfer Case where this Actuator Ring is applicable: 27107643758, 27107643759, 27107649182, 27107854164, 27108643151, 27108643152, 27108697255, 27108697256, 27108697257
Movable lever
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 25 | Actuator Ring | 1 pc | 1 pc |
* Hyundai ATC Transfer Case used in Hyundai Genesis DH 2014-2017
OE Numbers of Hyundai ATC Transfer Case where this Actuator Ring is applicable: 473004E000, 473004E201
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 25 | Actuator Ring | 1 pc | 1 pc |
* Maserati ATC Transfer Case used in Maserati Quattroporte/Ghibli 2013-2017, Levante 2016-...
OE Numbers of Maserati ATC Transfer Case where this Actuator Ring is applicable: 670033011, 670038072, 670100396
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 25 | Actuator Ring | 1 pc | 1 pc |
Betätigungsring
Bague de l'actionneur
Anello dell'attuatore
Anillo del actuador
Anel do atuador
Pierścień siłownika
Működtető gyűrű
Пръстен на задвижващия механизъм
Kroužek pohonu
Krúžok pohonu
Δακτύλιος ενεργοποιητή
Toimilaitteen rengas
Aktuatorring
Aktuatorring
Actuatorring
Ring för ställdon
Inel de acționare
Obroč pogonskega mehanizma
Pavaros žiedas
Piedziņas gredzens
Käivitusrõngas
حلقة المحرك
致动器环
एक्ट्यूएटर रिंग
Cincin Aktuator
アクチュエータリング
액추에이터 링
Cincin penggerak
Aktüatör Halkası
Vòng truyền động
Important information about the ATC35L/ATC45L of the first months of production
Suppose you intend to replace the bearings, piston, or levers in the ATC35L or ATC45L transfer cases made in the first months of production. In that case, you should keep the following fact in mind: a few months after the start of production of these transfer cases, the manufacturer changed the design—it switched from using thrust needle cages (No. 24 in the diagram) to needle bearing assemblies with washers.
This also entailed changing the thickness of parts 22 (piston), 25 (moving lever), and 27 (fixed lever). That is, the indicated bearings of the new and old types are not interchangeable. When planning renovations, please keep this in mind.
Now, we do not offer bearings without washers, but you can likely find the appropriate ones in bearing manufacturers' catalogs. The second option is to upgrade your transfer case by replacing the 3 parts mentioned above, and thus, you will upgrade the transfer case to a modernized version.
The sets for ATC35L and ATC45L include bearing assemblies with washers, corresponding to their latest revisions.
Figure 1 shows the design before it was restyling with bearings without washers. To understand the difference, please look at the two bearings in the set photo.
Figure 2. Bearings for the last revision of ATC35L transfer case
