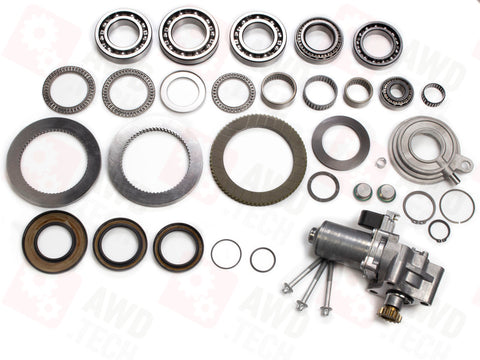

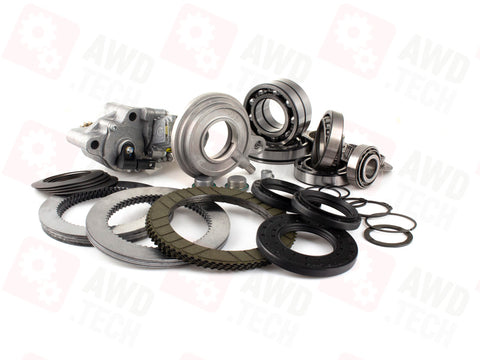

Repair Kit (for ATC300)
Description:
Part Name: Repair Kit
OE numbers: Not available
Repair Kit application in transmissions
* ATC300 Transfer Case used in BMW 3 2004-2013, 5 2004-2013
OE Numbers of ATC300 Transfer Case where this Repair Kit is applicable: 27107599690, 27107599693, 27107613152, 27107613153
Included items (what you get):
№ in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
---|---|---|---|---|---|
K03 | Actuator Kit | 27107546671 | 1 pc | 1 pc | Supplied with Code Resistor |
01 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
03 | Ball Bearing | 1 pc | 1 pc | ||
07 | O-Ring | 27107537630 | 1 pc | 1 pc | |
09 | Needle Bearing | 1 pc | 1 pc | ||
12 | Thrust Washer | 1 pc | 1 pc | ||
18 | Ball Bearing | 1 pc | 1 pc | ||
20 | Radial Sealing | 27107546667, 673002344, A0159973446 | 1 pc | 1 pc | |
23 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |
29 | Taper Roller Bearing | 1 pc | 1 pc | ||
35 | Taper Roller Bearing | 1 pc | 1 pc | ||
39 | Plug | 02C2D27148, 33117525064, 473904E000, 6000626082, 673002349 | 2 pcs | 2 pcs | |
40 | Radial Sealing | 27107539266 | 1 pc | 1 pc | |
43 | Ball Bearing | 2 pcs | 2 pcs | ||
46 | Snap Ring | 1 pc | 1 pc | ||
49 | O-Ring | 27107537631 | 1 pc | 1 pc | |
50 | Needle Bearing | 1 pc | 1 pc | ||
70 | Needle Sleeve | 1 pc | 1 pc | ||
72 | Needle Ring Axial | 2 pcs | 2 pcs | ||
77 | Disk Spring | 4 pcs | 4 pcs | ||
78 | Shim Set | 1 pc | 1 pc | Contains Shim Dimensions 3.40, 3.60, 3.80 | |
79 | Torque Transfer Shim | 6 pcs | 6 pcs | ||
80 | Steel Plate | 7 pcs | 7 pcs | ||
82 | Retaining Ring | 1 pc | 1 pc | ||
83 | Needle Bearing | 1 pc | 1 pc | ||
84 | Axial Needle Roller Bearing | 1 pc | 1 pc | ||
90 | Oil Pump | 1 pc | 1 pc | ||
91 | Clamp | 1 pc | 1 pc |
