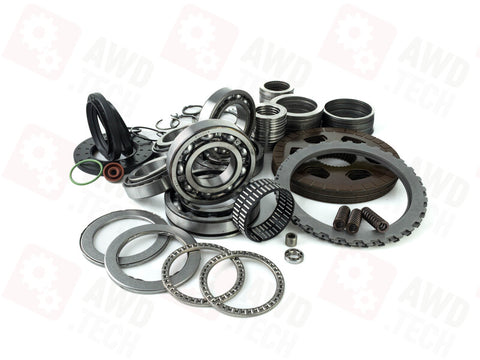

Repair Kit for ATC35L Transfer Case
* Our shipping prices are specified on a per-parcel basis, independent of the contents and quantity therein.
Applicable in: ATC35L Transfer Case**
Vehicles: BMW 1; 2; 3; 4; 5; 6; 7; X1 **
Type: Repair Kit
Vendor: Original
Available from locations:
Bratislava (Slovakia)
**For reference purposes only - see details in the description.
Related articles
Description:
Part Name: Repair Kit
OE numbers: Not available
Repair Kit application in transmissions
* ATC35L Transfer Case used in BMW 1 2009-..., 2 2009-..., 3 2009-..., 4 2009-..., 5 2009-..., 6 2009-..., 7 2009-..., X1 2010-2015
OE Numbers of ATC35L Transfer Case where this Repair Kit is applicable: 27107643754, 27107643755, 27107649181, 27107649718, 27107649725, 27108643149, 27108643150, 27108662300, 27108662968, 27108697975

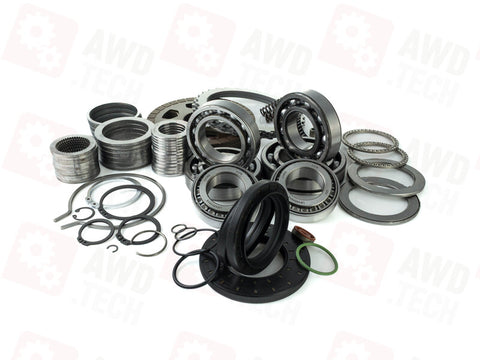

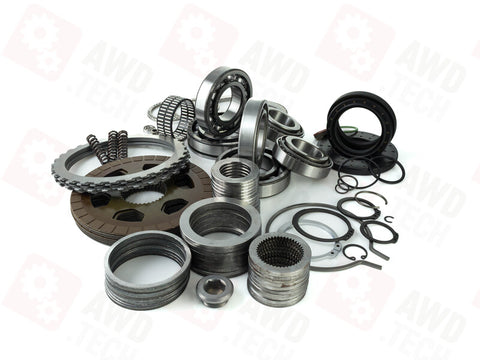

Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|

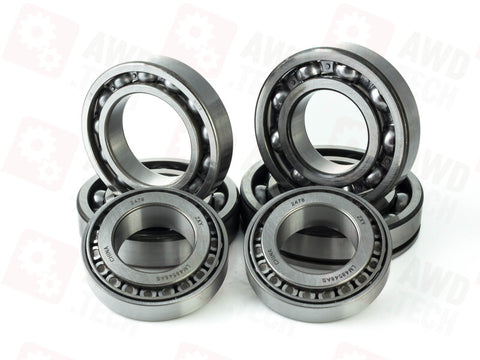

| 05 | Ball Bearing | 1 pc | 1 pc | ||

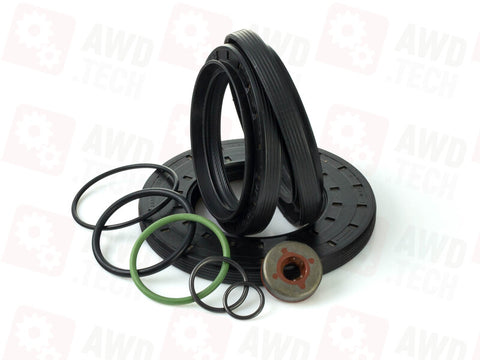

| 01 | O-ring | 02C2D27326, 27107609202 | 1 pc | 1 pc | |

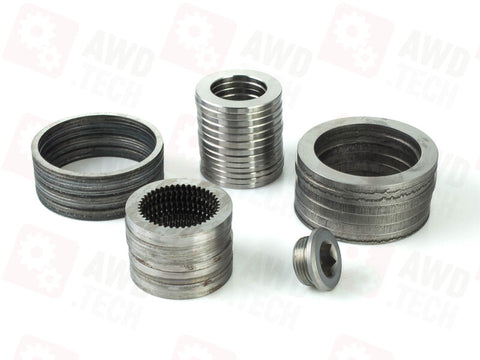

| K20 | Shim Set | 27107546670 | 1 pc | 1 pc | Contains 13 different Shims with Dimensions from 2.90mm up to 4.10mm |
| 37 | Seal O-ring | 27107599326, 6000626079, 673002346 | 1 pc | 1 pc | |

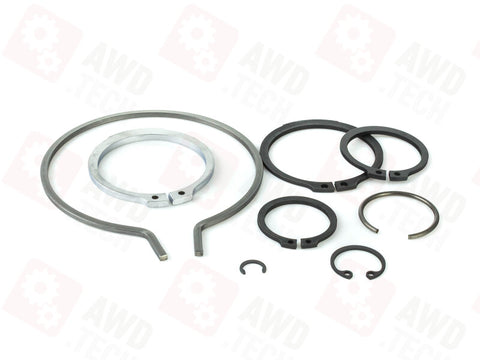

| 38 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |

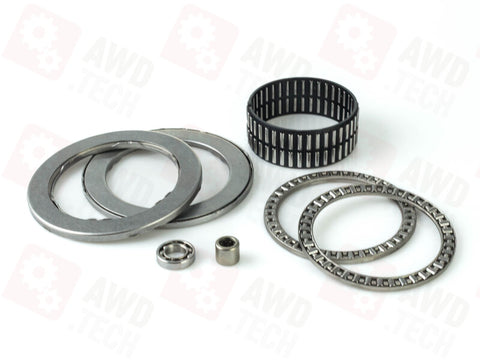

| 12 | Needle Bearing | 1 pc | 1 pc | ||
| 14 | Needle Bearing | 2 pcs | 2 pcs | ||

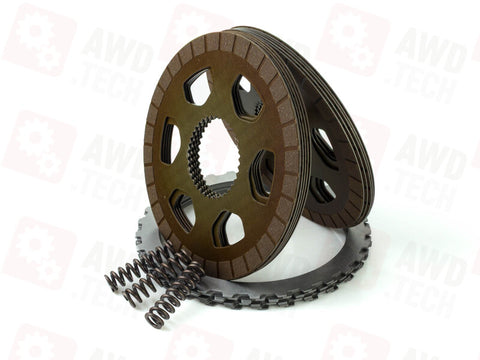

| 18 | Friction Plate | 10 pcs | 10 pcs | ||
| 19 | Steel Plate | 9 pcs | 9 pcs | ||
| 24 | Needle Bearing | 2 pcs | 2 pcs | ||
| 30 | Retaining Ring | 1 pc | 1 pc | ||
| 33 | Ball Bearing | 1 pc | 1 pc | ||
| 16 | Retaining Ring | 1 pc | 1 pc | ||
| 48 | Deflector | 1 pc | 1 pc | ||
| 53 | Needle Bearing | 1 pc | 1 pc | ||
| 55 | Ball Bearing | 1 pc | 1 pc | ||
| 56 | Retaining Ring | 1 pc | 1 pc | ||
| 57 | Retaining Ring | 1 pc | 1 pc | ||
| 63 | Plug | 02C2D27148, 33117525064, 473904E000, 6000626082, 673002349 | 1 pc | 1 pc | |
| 52 | Radial Sealing | 27107539266 | 1 pc | 1 pc | |
| 04 | Retaining Ring | 1 pc | 1 pc | ||
| 03 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
| 34 | Radial Sealing | 27107546667, 673002344, A0159973446 | 1 pc | 1 pc | |
| 58 | Radial Seal Ring | 27107593452 | 1 pc | 1 pc | |
| 59 | Seal O-ring | 27107593451, 673002350, 95834150100 | 1 pc | 1 pc | |
| 02 | Retaining Ring | 1 pc | 1 pc | ||
| 20 | Spring | 3 pcs | 3 pcs |
