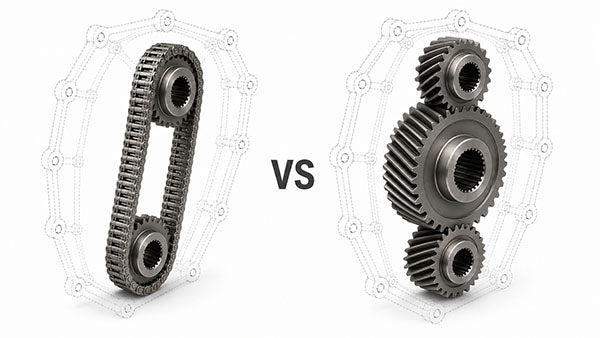

Gear-Driven vs Chain-Driven Transfer Cases

AWD.TECH Engineering Team • August 31, 2026

Engineering Differences, Advantages and Failure Modes

Transfer cases used in four-wheel-drive and all-wheel-drive vehicles perform the same basic task: distributing torque between the front and rear axles. Internally, however, manufacturers can use very different methods to transmit torque between shafts located on different axes.

In a gear-driven transfer case, this is accomplished through a gear train. In a chain-driven transfer case, torque is transmitted through sprockets connected by a high-strength automotive silent chain.

Key takeaway. Neither architecture is universally superior. Gear drives provide a highly constrained torque path, but gear geometry — particularly helical gearing — can introduce significant bearing and housing loads. Chain drives provide greater packaging flexibility and avoid helix-induced axial thrust, but wear across their articulated joints progressively increases effective chain length, slack and rotational play.

What Does "Gear-Driven" or "Chain-Driven" Actually Mean?

A transfer case may contain gears even when it is described as chain-driven. Planetary reduction gears, centre differentials, clutch components and other geared mechanisms can all exist inside a chain-driven transfer case.

In this article, gear-driven and chain-driven refer specifically to the method used to transmit torque between the relevant offset shafts:

Gear drive: main shaft → gear train → offset output shaft.
Chain drive: drive sprocket → transfer chain → driven sprocket.

This distinction is important. A chain-driven transfer case is not a transfer case "without gears", just as a gear-driven transfer case is not necessarily mechanically simple.

1. Gear-Driven Transfer Cases

In a gear-driven transfer case, torque is transmitted through direct contact between gear teeth. This creates a comparatively rigid kinematic relationship between the shafts, without the articulated joints present in a chain.

The behavior of the system depends strongly on the type and geometry of the gears. Two important forms are spur gears and helical gears.

Spur gears

Spur gears have teeth parallel to the axis of rotation. The force at the tooth contact can primarily be resolved into tangential and radial components. The tangential component transmits torque, while the radial component tends to separate the gears and must be reacted by the shafts, bearings and housing.

Because the helix angle is zero, a conventional spur gear does not generate the helix-induced axial thrust characteristic of a helical gear. This simplifies shaft support and reduces the axial load that the bearings and housing must react.

The main compromise is NVH. Tooth engagement is less progressive than with helical gearing, which can produce stronger gear-mesh excitation and characteristic whine, particularly as rotational speed increases.

Helical gears

Helical gears use teeth positioned at an angle to the shaft axis. Engagement develops progressively across the tooth face, and more than one tooth pair can share the load during part of the mesh cycle. This generally provides smoother torque transmission and favorable NVH compared with comparable spur gearing.

The improvement comes with an important mechanical consequence: axial thrust.

For a parallel-shaft helical gear, a simplified relationship is:

F_a = F_t × tan β

where F_a is axial force, F_t is tangential force and β is the helix angle. The exact force relationships depend on the gear geometry, but the important point for a transfer case is that a helical mesh generates an axial component that a spur mesh does not.

That force does not disappear inside the unit. It follows a structural load path:

gear teeth → shaft → bearing → transfer-case housing

The bearing arrangement must locate the shaft axially and react the thrust generated by the mesh. The load is then transferred through the bearing seats into the housing. As transmitted torque rises, tangential tooth force rises and, for a given helix angle, axial thrust rises with it.

Housing and shaft stiffness therefore become part of the gear-mesh problem. Deflection can alter shaft position and tooth contact pattern, which is why bearing support and housing condition matter in a heavily loaded gear-driven transfer case.

Helical gearing is consequently a classic engineering trade-off: smoother engagement and favorable NVH in exchange for axial loading and greater demands on bearings and housing structure. BorgWarner explicitly lists reduced axial load as one of the advantages of HY-VO chain drives compared with gear drives.^[1]

Helix direction matters

Axial thrust is directional. Its direction depends on the hand of the helix, the direction of rotation and which member is driving. Tooth direction is therefore not merely a manufacturing detail: the designer must consider where the thrust will be reacted and which bearings and housing sections will carry it under load.

Double-helical and herringbone gears

One method of reducing net axial thrust is to combine two opposite helix directions. In double-helical or herringbone gearing, the axial forces produced by the two tooth directions oppose each other and can substantially cancel.

This retains the progressive engagement advantages of helical gearing, but increases manufacturing complexity, cost and packaging requirements. A solution that is attractive in a large industrial gearbox is not necessarily economical or compact enough for an automotive transfer case.

Backlash in gear drives

A gear drive is not completely free of rotational play. Correctly designed gears require backlash for operating clearance, lubrication, thermal effects and manufacturing tolerances.

The important distinction is that this backlash is geometrically constrained by the relative position and profiles of the mating gears. With healthy gears, bearings and shafts, it remains relatively controlled. Additional play develops through tooth or spline wear, bearing deterioration, excessive shaft movement or damage to the supporting structure.

2. Chain-Driven Transfer Cases

Modern transfer cases normally use silent or inverted-tooth chains rather than conventional industrial roller chains. A well-known example is BorgWarner's HY-VO technology, an inverted-tooth chain using a rocker-joint architecture.^[2]

The chain runs around a driving and a driven sprocket and can transmit torque between shafts positioned considerably farther apart than would be practical with a simple two-gear mesh.

Packaging flexibility

Gear geometry imposes a relatively strict relationship between shaft centre distance and gear pitch diameter. If two shafts must be positioned farther apart, a gear-driven solution may require larger gears or one or more intermediate gears.

A chain can span that distance directly. This gives vehicle designers greater freedom to position an output shaft according to the surrounding transmission, prop shaft, floor and chassis geometry.

BorgWarner lists greater centre-distance tolerance, reduced axial load, lower noise, improved efficiency, low mass and lower cost among the advantages of its HY-VO transfer-case chain technology compared with gear drives.^[1] These are characteristics of a particular engineered chain system and should not be read as a universal claim that every chain drive outperforms every gear drive.

Chain drives and NVH

The term silent chain should not be interpreted literally. Individual links continuously enter and leave engagement with the sprocket teeth, producing periodic excitation at characteristic chain-mesh frequencies.

An SAE study by BorgWarner engineers identifies the dynamic interaction between chain links and sprockets during meshing as one of the predominant sources of noise in an automotive transfer case.^[3] A separate SAE production study of the NP244 transfer case likewise addressed chain-mesh noise and reported that a phased Gemini HyVo chain-and-sprocket system nearly eliminated the fundamental chain-mesh frequency.^[4]

Chain drive can therefore provide very good NVH performance, but it is not inherently noise-free. Gear drives and chain drives both generate characteristic excitation; the physical mechanisms are different.

3. Chain Wear and Progressive Increase in Rotational Play

One of the most important long-term differences between the architectures appears as a chain-driven transfer case accumulates mileage.

A transfer chain contains many articulated joints. These joints move every time the chain enters and leaves a sprocket, and their contact surfaces gradually wear. What is commonly called "chain stretch" is therefore largely a wear phenomenon rather than the steel links simply stretching elastically.

Experimental research on automotive HY-VO chains has documented wear of the chain joint components and resulting wear elongation.^[5]

The process can be simplified as:

joint wear → increase in effective pitch → increase in effective chain length → increased slack

A very small dimensional change at one joint may be insignificant by itself. Repeated across the full chain, however, it becomes a measurable increase in effective length.

Why chain wear increases drivetrain play

The sprocket centre distance inside a conventional transfer case is fixed. If effective chain length increases while that distance remains unchanged, the additional free length must be accommodated in the chain loop.

This increases slack and allows more angular movement between the driving and driven sprockets before the opposite chain span becomes fully loaded:

joint wear → chain elongation → increased slack → increased rotational play

This is a characteristic long-term disadvantage of chain drive. A gear drive also contains backlash, but a chain adds many articulated wear interfaces whose cumulative clearance can progressively increase the free movement of the complete drive.

Torque reversal makes the effect more noticeable

During torque transmission, one span of the chain carries the majority of the tensile load while the opposite span is comparatively unloaded. These are commonly described as the tight side and slack side.

When transmitted torque reverses, their roles exchange. Importantly, the vehicle does not have to be travelling backwards for this to happen. Torque reversal also occurs during normal forward driving, for example when the drivetrain transitions from acceleration to engine braking.

With a worn chain, a greater amount of slack must be taken up before the opposite span becomes fully loaded. As wear progresses, this can contribute to:

increased drivetrain clunk;
harsher drive-to-overrun transitions;
increased chain movement and noise;
chain slap in advanced cases;
higher transient loading of the chain and sprockets.

A drivetrain clunk should not automatically be diagnosed as a worn transfer-case chain. Splines, prop-shaft joints, CV joints, differentials and other drivetrain components also contribute to total rotational play.

4. Why Transfer-Case Chains Usually Do Not Use a Conventional Tensioner

If chain wear produces slack, an obvious question follows: why not use a tensioner similar to an engine timing-chain tensioner?

The key problem is reversing torque.

A conventional one-sided tensioner works most naturally when it acts on a predictable slack span. In a transfer-case power transmission, however, the tight and slack spans exchange roles when the direction of transmitted torque reverses.

A tensioner installed on only one branch could therefore periodically find itself acting on the load-carrying side rather than simply taking up free slack. A bidirectional system is mechanically possible, but it requires a more complex arrangement capable of accommodating changing load direction without introducing excessive contact force, friction or wear.

Many transfer-case chain drives instead use fixed sprocket centres and an allowable operating clearance. Wear elongation is therefore not continuously compensated, and increasing effective chain length appears as increasing slack and rotational play.

Technical note — sliding blocks and snubbers are not conventional chain tensioners.

Plastic or composite sliding blocks inside transfer cases are sometimes described as "chain tensioners". This can be misleading. A fixed guide or snubber does not continuously take up wear elongation or maintain chain tension in the way a spring- or hydraulically-loaded tensioner does.

BorgWarner documentation for a power-transmission chain snubber, specifically including four-wheel-drive transfer-case chains, describes its purpose as limiting chain movement and vibration by contacting the free span of the chain.^[6]

Its function is therefore primarily motion control: restricting excessive oscillation and displacement and helping control the chain path. The presence of a sliding block does not mean that chain wear is being automatically compensated.

5. Durability and Typical Failure Modes

Neither architecture is immune to wear. The difference lies in where the wear occurs and how it affects the system.

Chain-driven transfer cases

Chain wear elongation and accumulated slack.
Drive and driven sprocket wear.
Bearing wear and shaft misalignment.
Shaft spline wear.
Clutch-component wear where applicable.
Guide or snubber wear.
Evidence of excessive chain movement or housing contact.
Lubricant contamination or degradation.

Sprocket condition should not be ignored when replacing a severely worn chain. Chain and sprockets operate as a mating system, and substantial sprocket wear changes chain-tooth engagement.

Gear-driven transfer cases

Tooth-flank wear.
Pitting and scoring.
Excessive backlash.
Tooth damage.
Shaft and spline wear.
Bearing wear.
Shaft misalignment.
Bearing-seat and housing damage.

Bearing wear is not specific to gear-driven transfer cases. Both architectures depend on accurate shaft positioning. In a gear drive, bearing deterioration can change gear alignment, backlash and tooth contact. In a chain drive, it can alter sprocket alignment and chain tracking. Secondary damage can therefore become significant in either architecture.

6. Are Gear-Driven Transfer Cases Stronger?

The common statement that gear-driven transfer cases are stronger contains an element of historical and practical truth, but it is not a general engineering rule.

A useful example is the Mercedes-Benz VG150. The VG150 is a heavy-duty gear-driven transfer case using helical gears. Its construction demonstrates how a geared architecture can be designed for high mechanical loads, while also illustrating the axial-thrust considerations discussed earlier.

Its load capacity, however, is not created by the words gear-driven alone. Transfer-case capacity depends on the complete system:

gear or chain dimensions + shafts + bearings + splines + housing stiffness + materials + lubrication + operating conditions

A large, heavily supported gearset can transmit very high loads. A correctly sized chain drive can also transmit substantial torque. Drive architecture is only one factor determining the capacity and durability of the complete transfer case.

7. Real-World Examples

The AWD.tech parts catalog contains examples of both architectures across passenger cars, SUVs and utility vehicles.

Compact gear drive: BMW ATC300 and ATC350

Gear drive is not limited to heavy-duty applications. BMW's ATC300 and ATC350 demonstrate its use in compact passenger-vehicle AWD transfer cases.

They provide a useful contrast with chain-driven BMW units such as ATC400 and ATC500. Both architectures were used in related generations of BMW xDrive hardware, showing that chain drive did not simply replace gear drive as a newer technology.

For the detailed history, hardware families and applications, see the BMW All-Wheel Drive Systems: Complete Technical Timeline and Model Guide.

Chain drive: BMW ATC400 and ATC500

The ATC400 and ATC500 use a chain-driven front output. The ATC400 is also a practical example of the distinction between the transfer chain and separate sliding blocks used to control chain movement.

Mercedes-Benz DCS

The Mercedes-Benz DCS, used in GL-Class, M-Class and R-Class applications, provides another example of a chain-driven transfer case. Its chain-and-sprocket architecture illustrates the packaging advantage of transmitting torque between offset shafts without an intermediate gear train.

Volkswagen Amarok PL72T

The PL72T used in the first-generation Volkswagen Amarok Permanent 4MOTION drivetrain is an especially useful example because it dispels the idea that chain drive is inherently a light-duty passenger-car solution.

The PL72T combines a mechanical Torsen centre differential with a transfer chain and is used in an AWD system intended for a utility vehicle. AWD.tech's repair experience with this unit also shows chain wear as a real service consideration alongside differential, bearing and other internal wear.

For identification, construction and repair details, see the Volkswagen Amarok Transfer Case Guide.

8. Gear Drive vs Chain Drive: Engineering Comparison

Characteristic	Gear Drive	Chain Drive
Torque transmission	Direct gear-tooth contact	Chain and sprockets
Rotational play	Backlash is geometrically constrained by gear mesh	Clearance is distributed through the chain system
Effect of wear on play	Increases through gear, spline, bearing or support wear	Joint wear progressively increases effective chain length, slack and play
Centre-distance flexibility	Relatively limited by gear geometry	High
Large shaft-centre distance	May require larger or intermediate gears	Well suited
Axial load	Low helix-induced thrust with spur gears; significant with helical gears	No equivalent helix-induced gear thrust
NVH source	Gear-mesh excitation	Chain-sprocket mesh excitation
Packaging flexibility	Lower	Higher
Characteristic wear elements	Gear teeth, splines, bearings	Chain joints, sprockets, bearings
Progressive chain slack	Not applicable	Yes
Conventional one-sided tensioner	Not applicable	Poorly suited to reversing torque without additional design measures
AWD.tech examples	VG150; ATC300; ATC350	ATC400; DCS; PL72T

9. What Matters During Repair and Rebuilding?

The drive type changes what deserves particular attention during diagnosis, but a transfer case should always be evaluated as a complete mechanical system.

For a chain-driven unit

Do not assess the chain only by whether it is visibly damaged; effective elongation and excessive slack are important wear parameters.
Inspect both sprockets together with the chain.
Check guides or snubbers for abnormal contact and wear, but do not treat them as a substitute for a worn chain.
Check bearing condition and sprocket alignment.
Inspect clutch and spline components where applicable.

For a gear-driven unit

Inspect tooth contact, pitting, scoring and backlash.
Check bearing condition and shaft endplay.
On helical-gear designs, remember that axial gear forces are reacted through the bearings and housing structure.
Inspect splines, bearing seats and housing condition rather than treating visible gear damage as an isolated failure.

FAQ

Are gear-driven transfer cases always stronger than chain-driven ones?

No. The complete design determines torque capacity: gear or chain dimensions, shafts, bearings, splines, housing stiffness, materials and lubrication all matter. The heavy-duty Mercedes-Benz VG150 shows what can be achieved with a robust gear-driven design, but drive type alone does not define strength.

Why are helical gears used if they create axial thrust?

Helical teeth engage progressively and generally provide smoother torque transmission and favorable NVH. The trade-off is axial thrust, which must be carried by the bearings and ultimately the housing.

Do chain-driven transfer cases develop more play as they wear?

Yes. Wear at the articulated chain joints progressively increases effective chain length. With fixed sprocket centres, the additional length appears as greater slack and can increase rotational play between the driving and driven sprockets.

Why do transfer-case chains not simply use a timing-chain-style tensioner?

The transmitted torque can reverse, causing the tight and slack chain spans to exchange roles. A conventional one-sided tensioner would therefore not always remain on the unloaded span. More complex bidirectional systems are possible, but many transfer cases instead use fixed sprocket centres and controlled chain clearance.

Are the plastic sliding blocks inside a transfer case chain tensioners?

Not in the conventional wear-compensating sense. Fixed sliding blocks or snubbers primarily limit chain movement and vibration. They do not continuously take up chain elongation as the chain wears.

Does a chain-driven transfer case contain no gears?

No. "Chain-driven" refers to the relevant offset-shaft drive. A chain-driven transfer case may still contain planetary gears, a centre differential, clutch mechanisms or other geared components.

Conclusion

Gear drive and chain drive are two solutions to the same engineering problem, but they distribute their compromises differently.

A gear drive provides a highly constrained relationship between shafts and can maintain relatively low rotational play. Spur gears avoid helix-induced axial thrust but present a greater NVH challenge; helical gears provide smoother engagement while generating axial forces that must be carried through the shafts, bearings and housing.

A chain drive avoids that helical-gear thrust mechanism and provides much greater freedom in shaft placement. Modern automotive silent chains can transmit substantial torque with favorable packaging and NVH characteristics. Their characteristic long-term disadvantage is progressive wear of the articulated joints: effective chain length increases, slack grows and rotational play can increase with mileage.

Neither architecture is universally superior. The appropriate choice depends on the required balance of torque capacity, packaging, NVH, efficiency, mass, manufacturing complexity and durability.

For repair, the same principle applies. Chain, sprockets, gears, bearings, shafts, splines and housing form one mechanical system. Excessive clearance or damage in one component changes the operating conditions of the others, so successful rebuilding requires diagnosis of the complete transfer case rather than replacement of the most obvious failed part alone.
